MIL-STD-1553B Data Bus TRB Adapter Kit for TDR


Simplify Aging Aircraft Wiring Maintenance Using High-Resolution MOHR CT100 Series TDR Cable Analyzers

MIL-STD-1553B Databus TRB Adapter Kit

Key Features

  • Designed for use with the high-resolution CT100B TDR Cable Tester
  • Ideal for TDR testing MIL-STD-1553B data bus aerospace cable assemblies
  • Detect and localize open, short, and partial cable and connector faults on the main bus and stubs
  • Detects cable and connector faults through 3+ transformer couplers
  • Simplifies troubleshooting of aging aircraft MIL-STD-1553 cable assemblies

Datasheet

pdf icon MIL-STD-1553B Data Bus TRB Adapter Kit Datasheet.



Application Notes


pdf icon AN-2016-1 1553B Data Bus Cable Fault Detection Through Multiple Transformer Couplings


pdf icon AN-2016-2 1553B Data Bus Cable Compression Damage Detection Through Transformer Couplings

Key Specifications

MIL-STD-1553B Databus TRB Adapter Kit Components


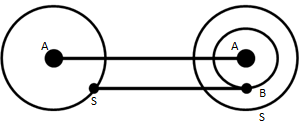

P/N: 1553-A
BNC Pin to TRB Inner Conductor
BNC Shield to TRB Outer Conductor
Best for open conductor and conductor-to-conductor short and partial fault detection

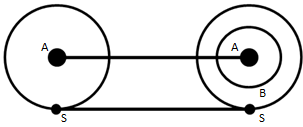

P/N: 1553-B
BNC Pin to TRB Inner Conductor
BNC Shield to TRB Shield
Best for individual conductor open, short, and partial fault detection

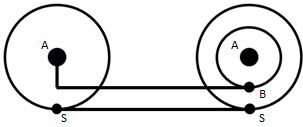

P/N: 1553-C
BNC Pin to TRB Outer Conductor
BNC Shield to TRB Shield
Best for individual conductor open, short, and partial fault detection

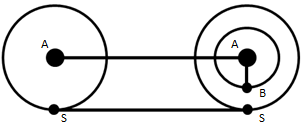

P/N: 1553-D
BNC Pin to TRB Inner & Outer Conductor
BNC Shield to TRB Shield
Best for conductor-to-shield short and shield fault detection

Dimensions

1.625(H) x 6.75(W) x 4.50(L) in.
(4.1 x 17.1 x 11.4 cm)


Weight

0.9 lbs. (410 g)


Regulatory

CE compliance logo
Complies with all applicable EU directives, as specified by the Declaration of Conformity supplied with the instrument.

Adapter Case:

MIL-STD-810F Transit Drop, Immersion Test
SAE J575 Dust Resistance Test
