TRB Differential Adapter Kit for CT100B

Precision adapter for use with the high-resolution MOHR CT100B TDR Cable Analyzer


TRB Differential Adapter Kit

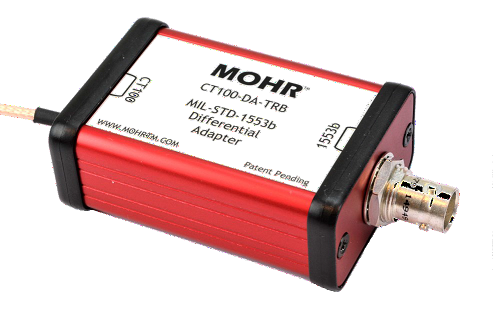

The MOHR CT100-DA-TRB Differential Adapter allows for low-loss differential TDR measurements of installed 1553B systems by connecting directly to the TRB-terminated cabling standard on many buses and/or stubs of installed systems.

MOHR’s Differential TDR signal adapters redefine the limits of single-ended TDR’s by creating a high-resolution differential TDR signal that matches the systems under test. The MOHR CT100-DA-TRB allows accurate, high-resolution cable impedance measurements in multi-conductor systems such as sensor networks, data bus harnesses, network and communications cables.

The CT100-DA-TRB ensures maximum signal integrity by connecting directly to the vehicle or system under test without the need for adapter harnesses or test sets.


Dimensions

4.25(L) x 2.25(W) x 1.1(H) in.
(11 x 6 x 3 cm)


Weight

4 oz (110 g)


Datasheet

pdf icon TRB Differential Adapter Kit Datasheet



Key Features

  • Connects directly to twinaxial and triaxial cabling
  • Differential characterization of cable assemblies
  • Fault Detection from stub end of MIL-STD-1553B Buses
  • Through-transformer measurement of MIL-STD-1553B Databus
  • Measurement range independent of number of transformers
  • Rapid analysis of compression damage and soft faults
  • Small, lightweight and rugged
  • Passive device, no additional power required

Specifications
Insertion Loss<1dB across operating range
Test ConnectorTRB
Temperature-20C to +60C
Extension CableRG316 36” Coaxial BNCm to MMCXf
